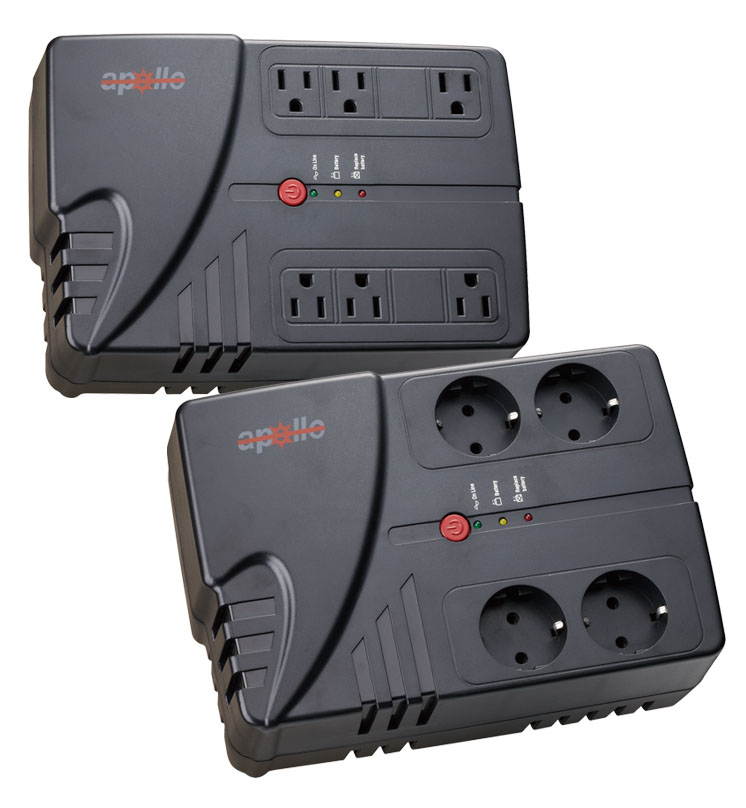

UPS KA Series

Line Interactive KA Series

Model

1045KA

1075KA

Input

Voltage Window

100/110/120/220/230/240VAC Nominal -25%+25%

Frequency

50Hz or 60Hz

Inv. O/P

Waveform

PWM Simulated Sine wave

Frequency

50Hz or 60Hz +/-1Hz

Capacity

450VA / 225W

750VA / 375W

Regulation

+/-3%

Transfer Time

2ms typical; 5ms maximum

Battery

Types

Lead-Acid maintenance-free

DC Bus

12Vdc

Recharge Time

Typically 8 hours to 90% charged

Run Time

6-20 minutes depending on load connected

Protection

Over/Under Volt.

Switch to Bat. O/P when Mains over regulation range

Overload/Short

Fuse & current limited for both mains and Battery modes

Low Battery

Two stages; no battery drain after cut off

Noise Filtering

EMI/RFI full time suppression

Mechanical

Socket Type

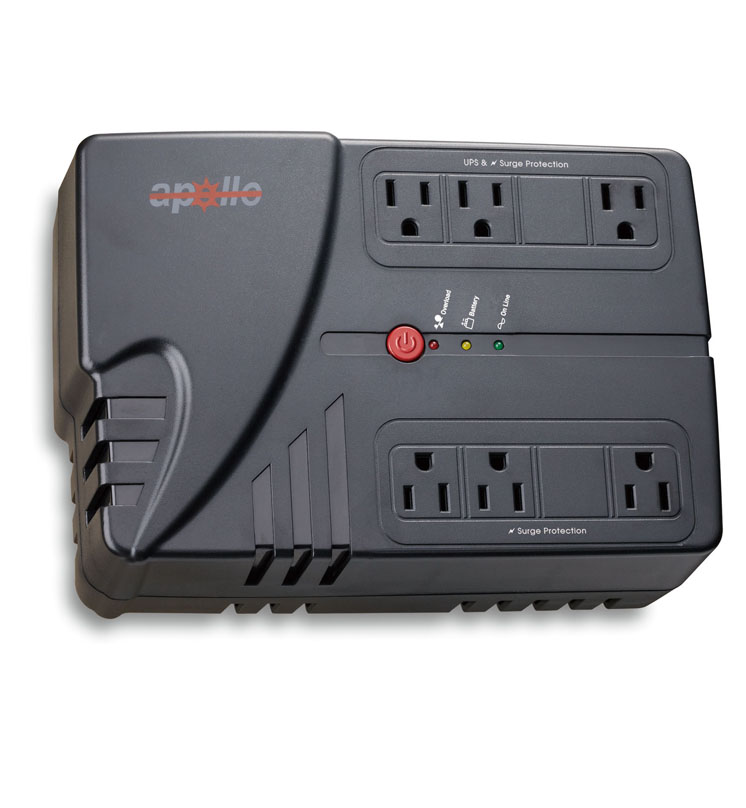

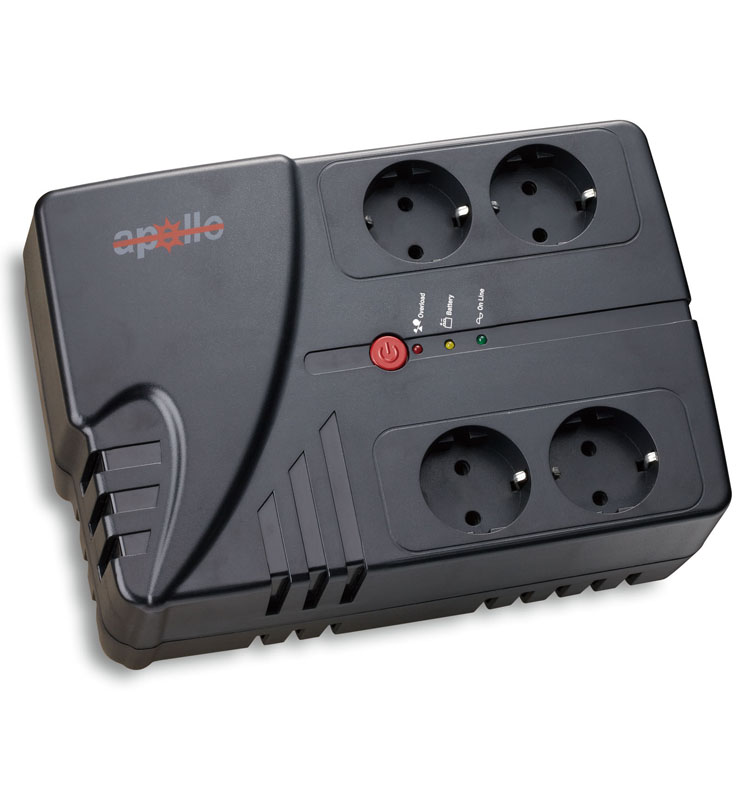

NEMA5-15R or German

Environment

Ambient

0-40 degree C, 0-90% non-condensing

Audible

Less than 35 dBA (1M distance)

Warning

LED on Front

AC Normal: Green LED Steadily; Backup: Yellow LED intermittently,

Overload : Red LED intermittently

Signals

Beeping Alarm

On Battery, Battery Low and Overload

CommunicationPort

RS232

Tel/Fax/Modem Protection

RJ11

Cold Start

It enables to activate UPS without Utility Power

*Specifications subject to change without prior notice
