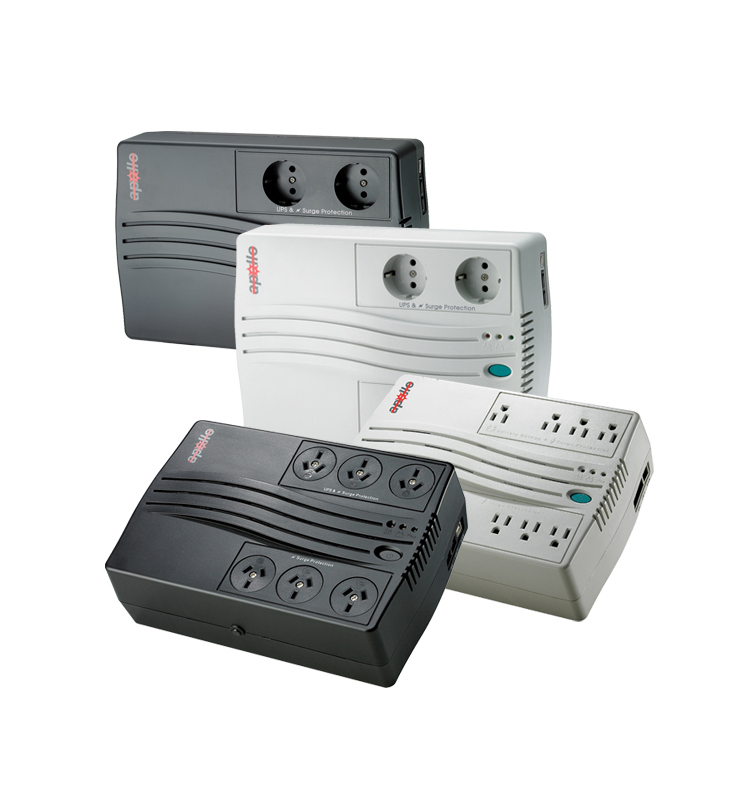

UPS SP series

  • RJ45 jack for internet protection

Model

1050SP

1060SP

1080SP

Input

Voltage Window

100/110/120/220/230/240VAC Nominal -25%+25%

Frequency

50Hz or 60Hz

Inv. O/P

Waveform

PWM Simulated Sine wave

Frequency

50Hz or 60Hz +/-1Hz

Capacity

500VA

600VA

800VA

Regulation

+/-3%

Transfer Time

2ms typical; 5ms maximum

Battery

Types

Lead-Acid maintenance-free

DC Bus

12V/7A

12V/7A

12V/9A

Number

1 PCE

1 PCE

1PCE

Recharge Time

Typically 8 hours to 90% charged

Run Time

6-20 minutes depending on load connected

Protection

Over/Under Volt.

Switch to Bat. O/P when Mains over regulation range

Overload/Short

Fuse & current limited for both mains and Eatery modes

Low Battery

Two stages; no battery drain after cut off

Noise Filtering

EMI/RFI full time suppression

Mechanical

Socket Type

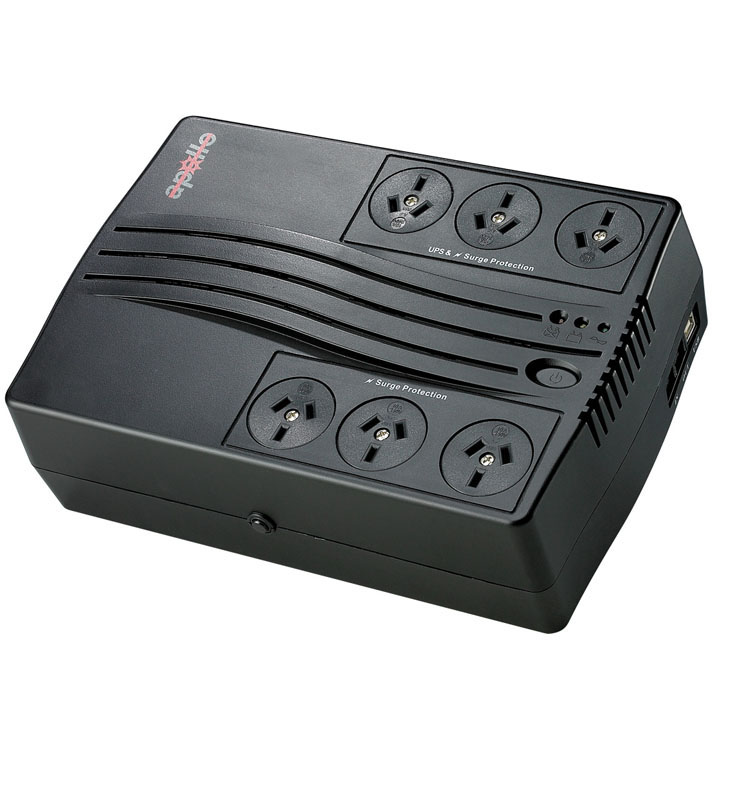

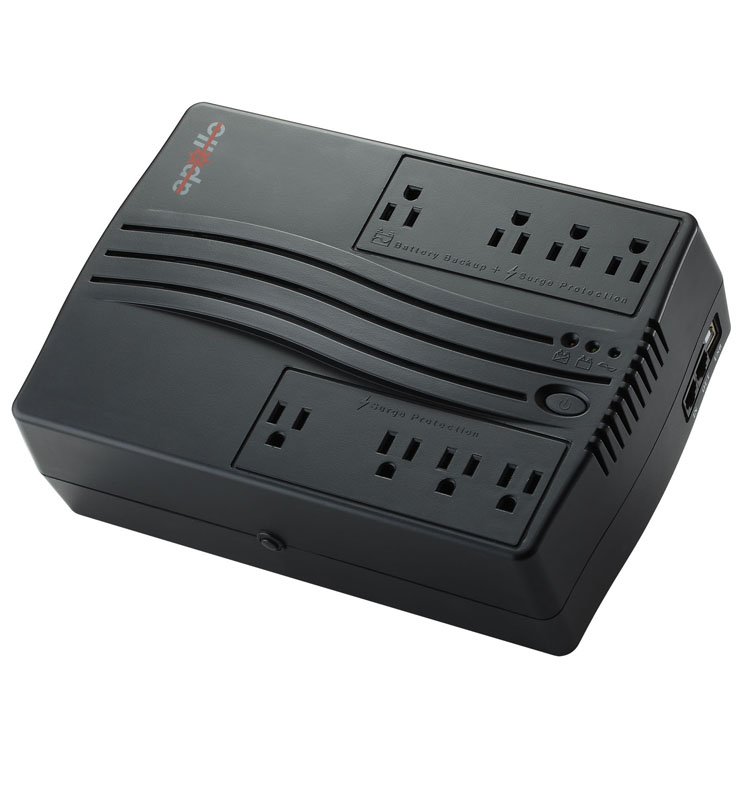

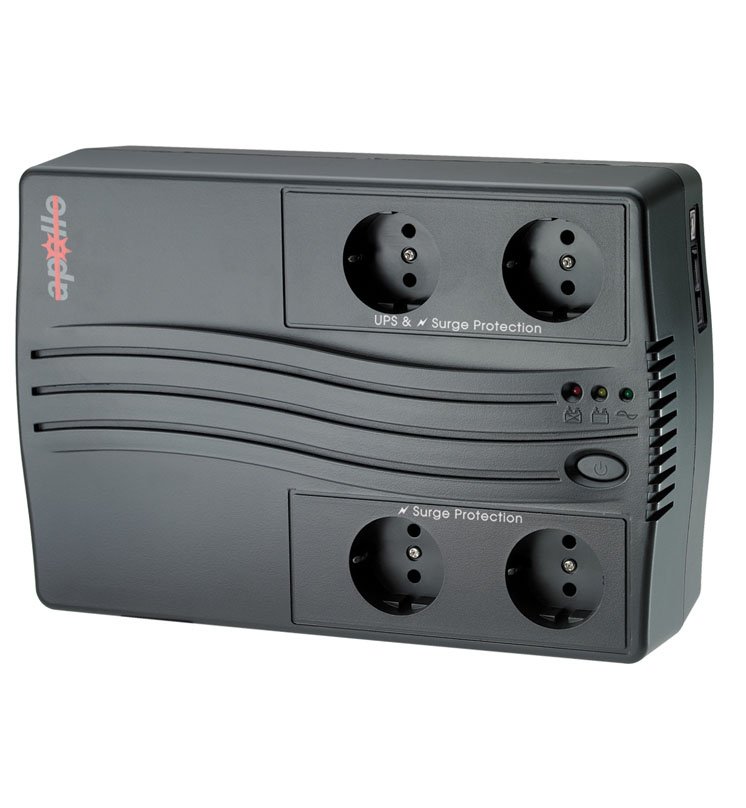

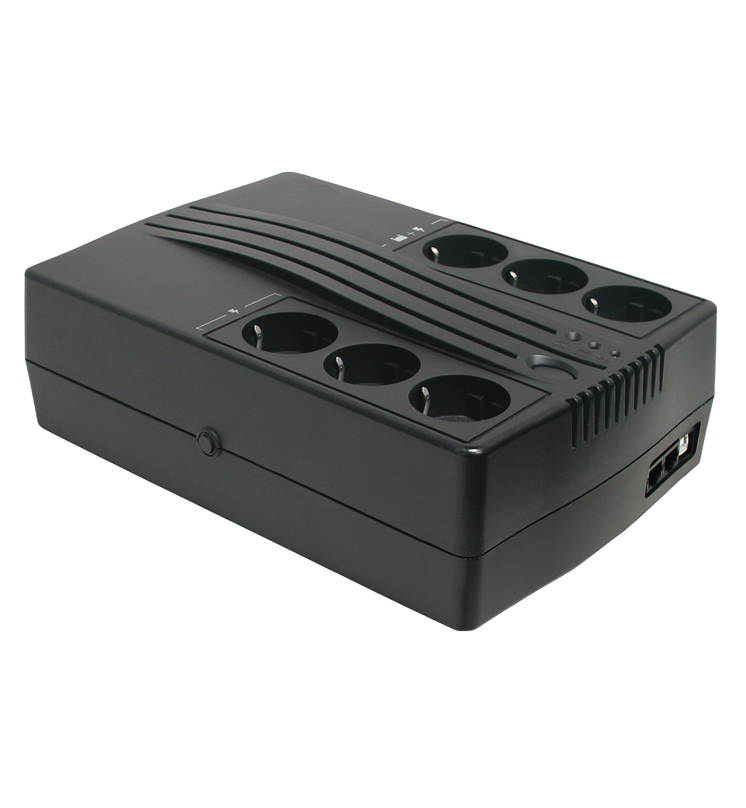

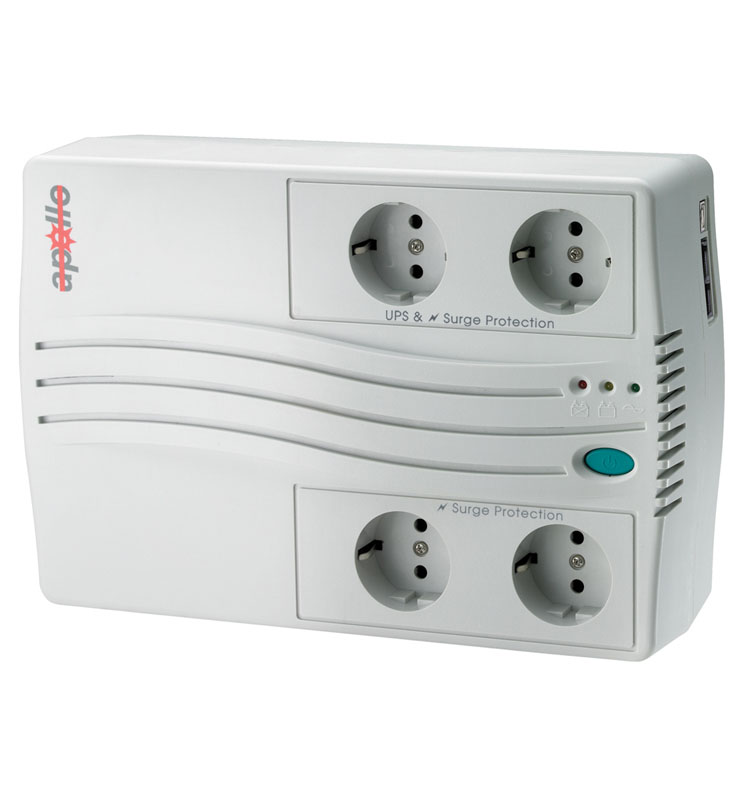

NEMA5-15R×8 PCS,  German×4 PCS,  German×6PCS,  Australia×6 PCS

Dim (D*W*H)

265×170×85 mm  (German*6PCS : 285×193×80mm)

Weight

5.5 kgs

6 kgs

6.5 kgs

Environment

Ambient

0-40 degree C, 0-90% non-condensing

Audible

Less than 35 dBA (1M distance)

Warning

LED on Front

AC Normal: Green Steadily,  Backup: Yellow intermittently

Signals

Beeping Alarm

On Battery, Battery Low and Overload

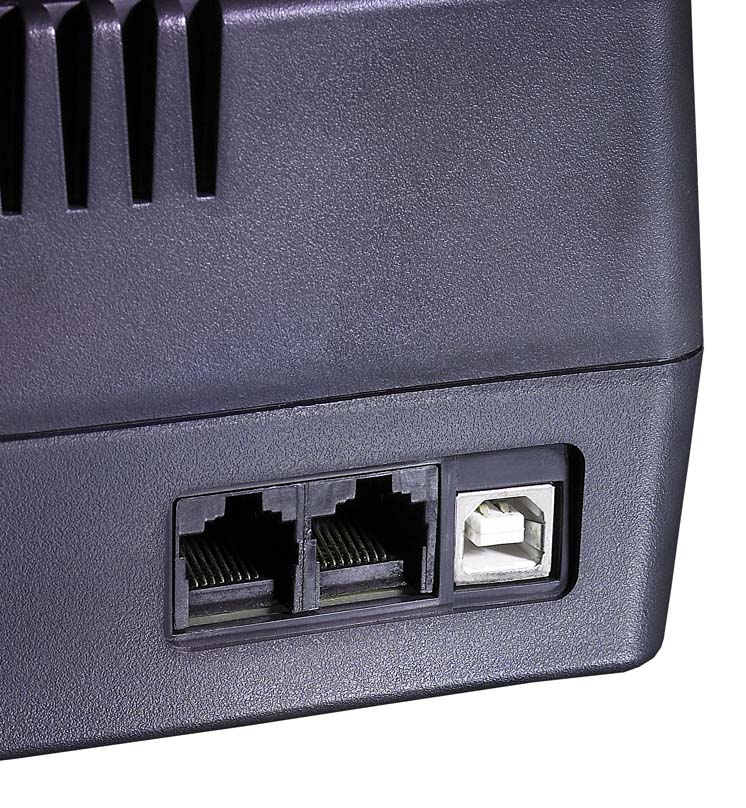

Communication Port

USB

Modem/Internet Protection

RJ45

Cold Start

It enables to activate UPS without Utility Power

*Specifications subject to change without prior notice
