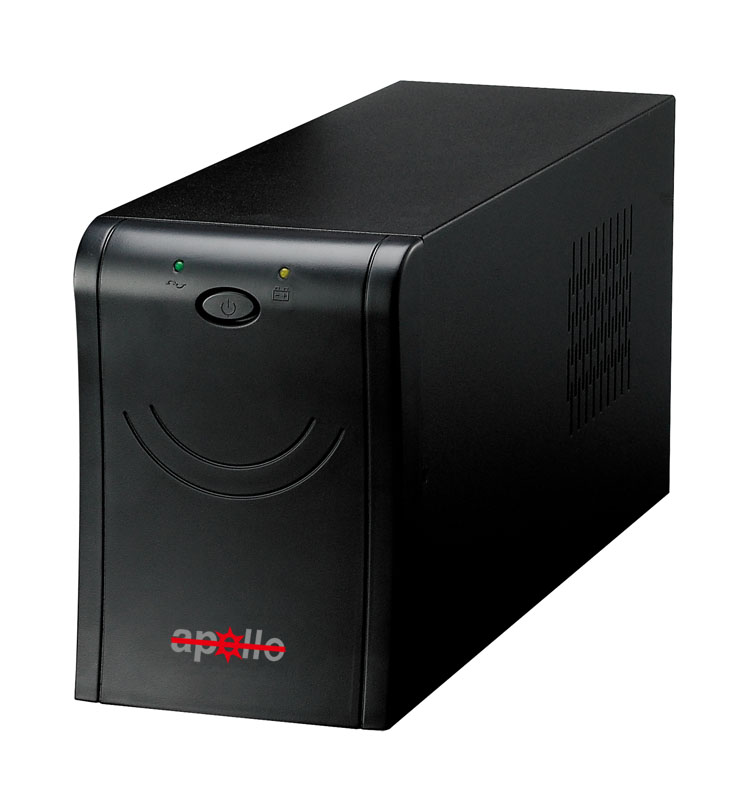

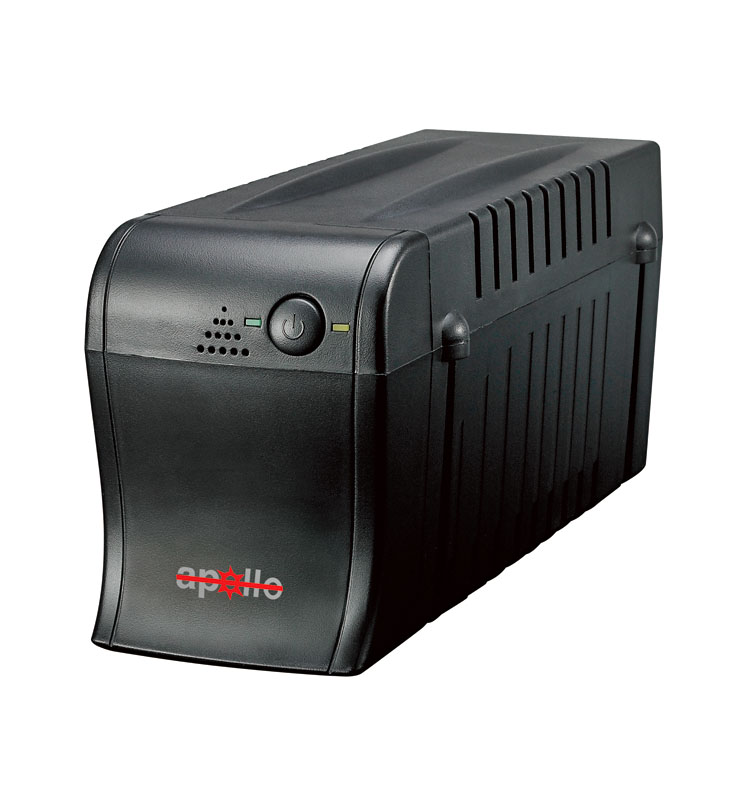

UPS F Series

Model

1052F

1062F

1082F

1100F

1120F

1140F

1200F

1300F

Input

Voltage Window

100/110/120/220/230/240VAC Nominal -25%+25%

Frequency

50Hz or 60Hz

Inv. O/P

Waveform

PWM Simulated Sine wave

Frequency

50Hz or 60Hz +/-1Hz

Capacity

520VA

620VA

820VA

1000VA

1200VA

1400VA

2000VA

3000VA

Regulation

+/-3%

Transfer Time

2ms typical; 5ms maximum

Battery

Types

Lead-Acid maintenance-free

DC Bus

12V/7AH

12V/7AH

12V/9AH

12V/7AH

12V/7AH

12V/9AH

12V/9AH

12V/9AH

Number

1 PCE

1 PCE

1 PCE

2 PCS

2 PCS

2 PCS

2 PCS

4 PCS

Recharge Time

Typically 8 hours to 90% charged

Run Time

10-30 minutes depending on load connected

Protection

Over/Under Volt.

Switch to Bat. O/P when Mains over regulation range

Overload/Short

Fuse & current limited for both mains and Battery modes

Low Battery

Two stages; no battery drain after cut off

Noise Filtering

EMI/RFI full time suppression

Mechanical

Socket Type

IEC, NEMA5-15R, German, French,

Socket No. (pcs)

IEC*4,

NEMA5-15R*6,

German*1+IEC*1

IEC*4,

NEMA5-15R*6,

German*2+IEC*1

IEC*4, NEMA5-15R*6, German*3+IEC*1

Dim (L*W*H)mm

325×110×140

360×115×160

483×165×228

Weight (kgs)

6

7.5

9

11

11

11.5

12

24

Shipping Wt.

7

8

9.5

12

12

12

13

25

Environment

Ambient

0-40 degree C, 0-90% non-condensing

Audible

Less than 35 dBA (1M distance)

Warning

LED on Front

AC Normal: Green LED Steadily;  Backup: Yellow LED intermittently

Signals

Beeping Alarm

On Battery, Battery Low and Overload

Communication Port

DB9 or USB

Tel/Fax/Modem Protection

RJ11 or RJ45

Cold Start

It enables to activate UPS without Utility Power

*Specifications subject to change without prior notice
