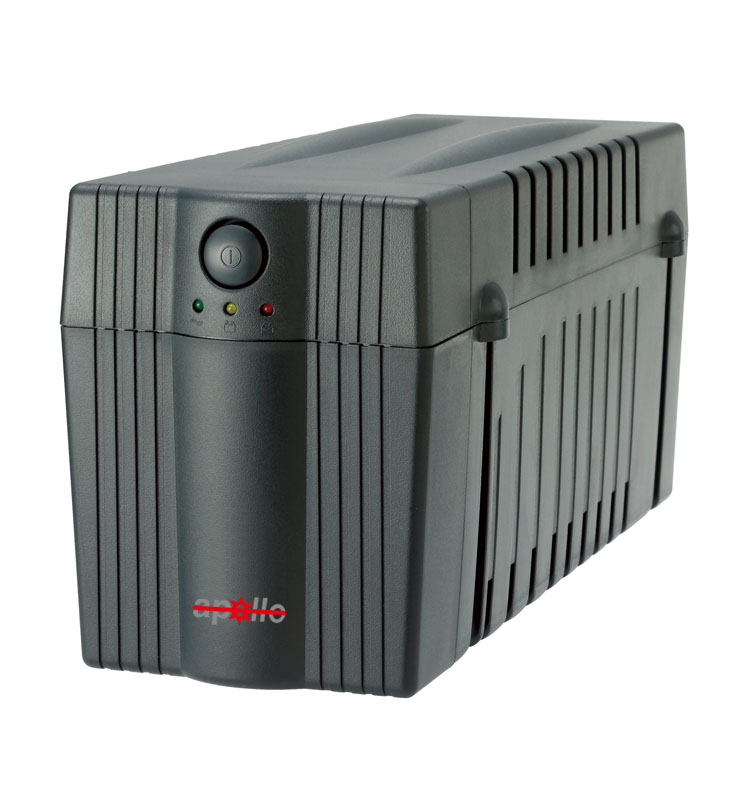

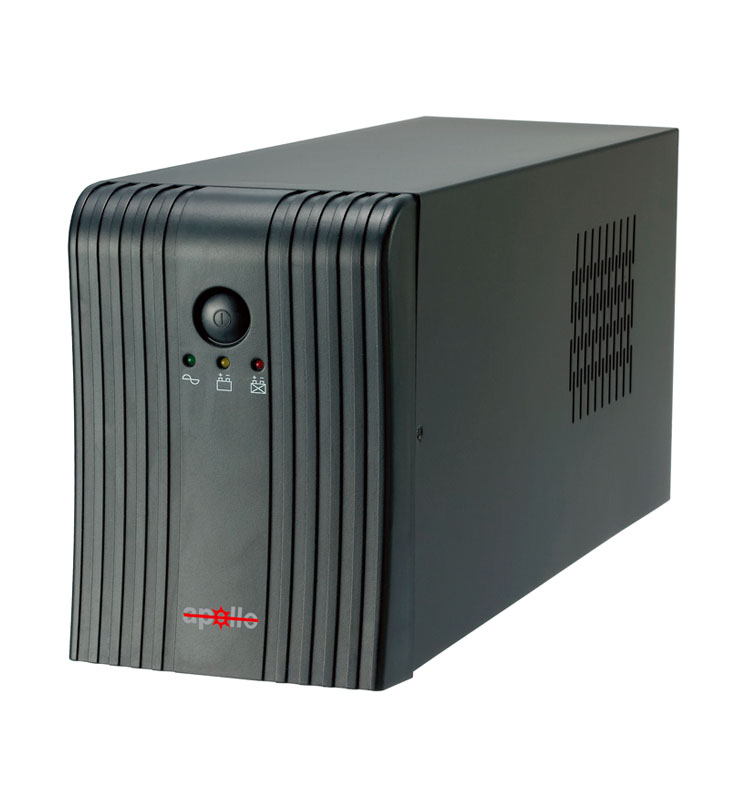

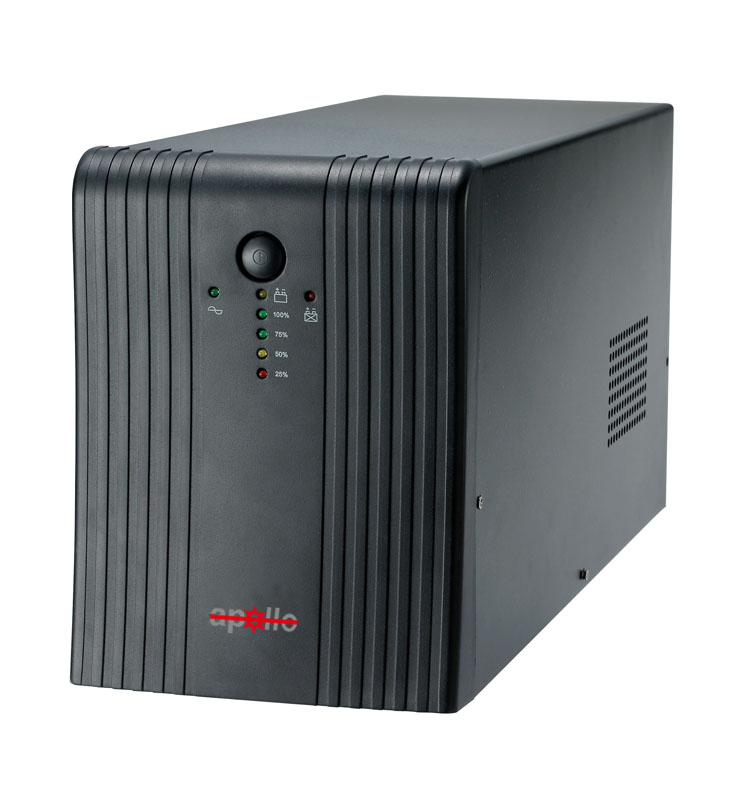

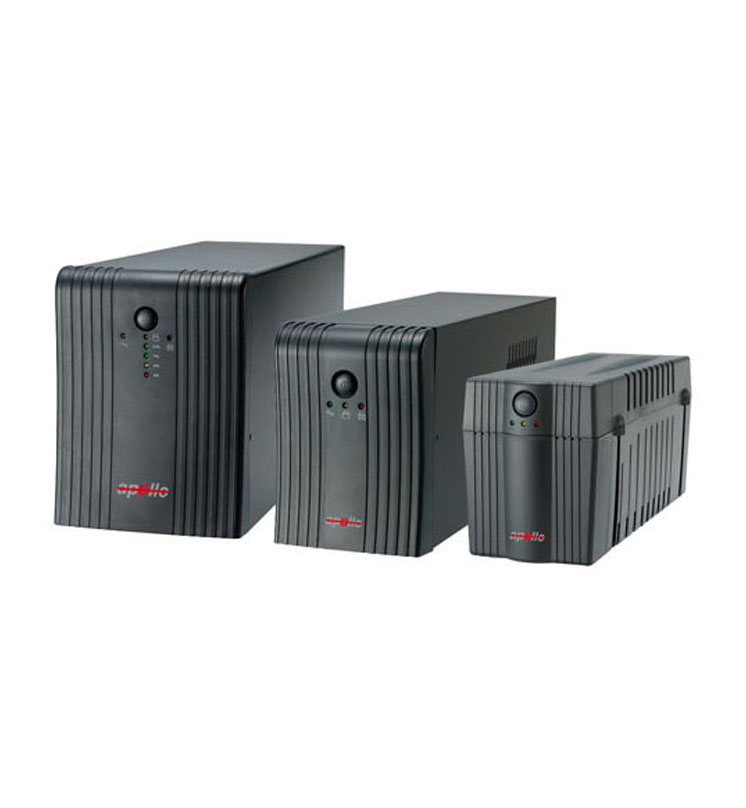

UPS Z series

Model

1050Z

1060Z

1080Z

1100Z

1150Z

1200Z

1300Z

Input

Voltage Window

100/120/220/230/240VAC Nominal -25%+25%

Frequency

50Hz or 60Hz

Inv. O/P

Waveform

PWM Simulated Sine wave

Frequency

50Hz or 60Hz +/-1Hz

Capacity

500VA

600VA

800VA

1000VA

1500VA

2000VA

3000VA

Regulation

+/-3%

Transfer Time

2ms typical; 5ms maximum

Battery

Types

Lead-Acid maintenance-free

DC Bus

12V/7AH

12V/7AH

12V/9AH

12V/7AH

12V/9AH

12V/9AH

12V/9AH

Number

1 PCE

1 PCE

1 PCE

2 PCS

2 PCS

2 PCS

4 PCS

Recharge Time

Typically 8 hours to 90% charged

Run Time

10-30 minutes depending on load connected

Protection

Over/Under Volt.

Switch to Bat. O/P when Mains over regulation range

Overload/Short

Fuse & current limited for both mains and Battery modes

Low Battery

Two stages; no battery drain after cut off

Surge

Meets IEEE587 Cat. A

Noise Filtering

EMI/RFI full time suppression

Mechanical

Socket Type

IEC, NEMA5-15R, German, French,

Socket No. (pcs)

IEC*4,

NEMA5-15R*6,

German*1+IEC*1

IEC*4,

NEMA5-15R*6,

German*2+IEC*1

IEC*4, NEMA5-15R*6, German*3+IEC*1

Dim (L*W*H)mm

325×110×140

360×115×160

483×165×228

Weight (kgs)

6

7.5

9

11

11.5

12

24

Shipping Wt.

7

8

9.5

12

12

13

25

Environment

Ambient

0-40 degree C, 0-90% non-condensing

Audible

Less than 35 dBA (1M distance)

Warning

LED on Front

AC Normal: Green Steadily,  Backup: Yellow Intermittently

Signals

Beeping Alarm

On Battery, Battery Low and Overload

CommunicationPort

DB9

DB9 or USB

Tel/Fax/Modem Protection

RJ11

RJ11 or RJ45

Cold Start

It enables to activate UPS without Utility Power

*Specifications subject to change without prior notice
