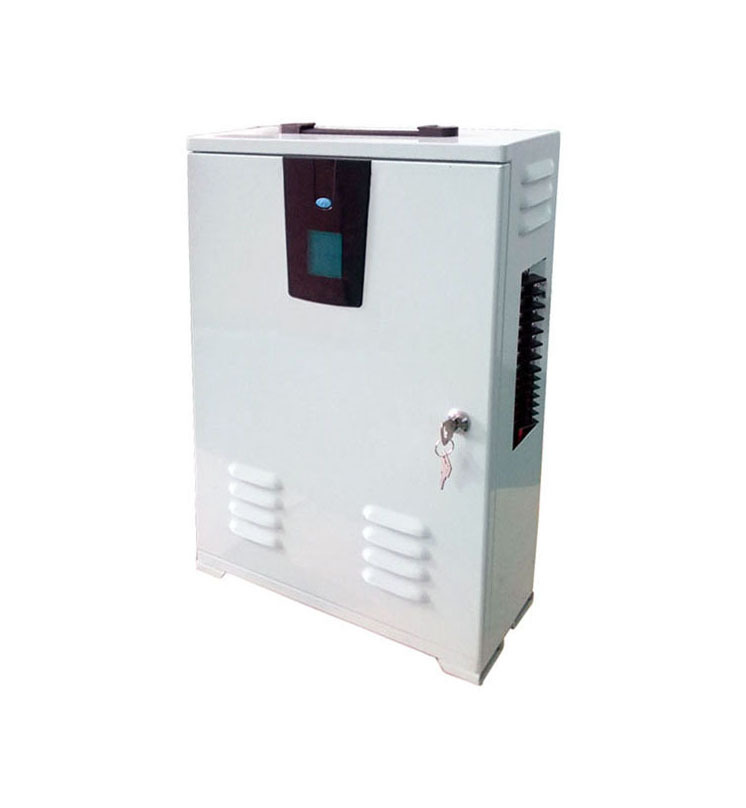

TPS (Single Phase)

  • LCD display
  • Smart CPU Control
  • Easy to installation

(Single Phase)

Model

TPS-5.5S

TPS-7.5S

TPS-11S

Capacity

5.5 KW

7.5 KW

11 KW

AC Input

220Vac +/- 20% Single Phase Input

(or 380Vac +/- 20% Single Phase Input)

50/60Hz ± 10%

DC Voltage

24 Vdc

(12V/7Ah * 2pcs)

36 Vdc

(12V/7Ah * 3pcs)

48 Vdc

(12V/7Ah * 4pcs)

Charger Type

Controlled Rectifier CVCC

Charging Time

10 Hours for 90% of Full Battery Capacity

Inverter

Technology

IGBT based PWM Sine Wave

Output Voltage

220Vac Single Phase (or 380Vac Single Phase), 50/60Hz ± 0.1Hz

Inverter Efficiency

85%

Overload

105% continuous

Harmonic Distortion

<3% on Linear load

Crest Factor

4:1

Power Factor

0.8

Phase Displacement

120° ± 1°

LCD Display

AC normal, Inverter normal, Batter low, Overload

Protection

Output Overload & Short circuit ,

DC Under & Over Voltage

*Specifications are subject to change without prior notice due to constant improvement in design & technology.
