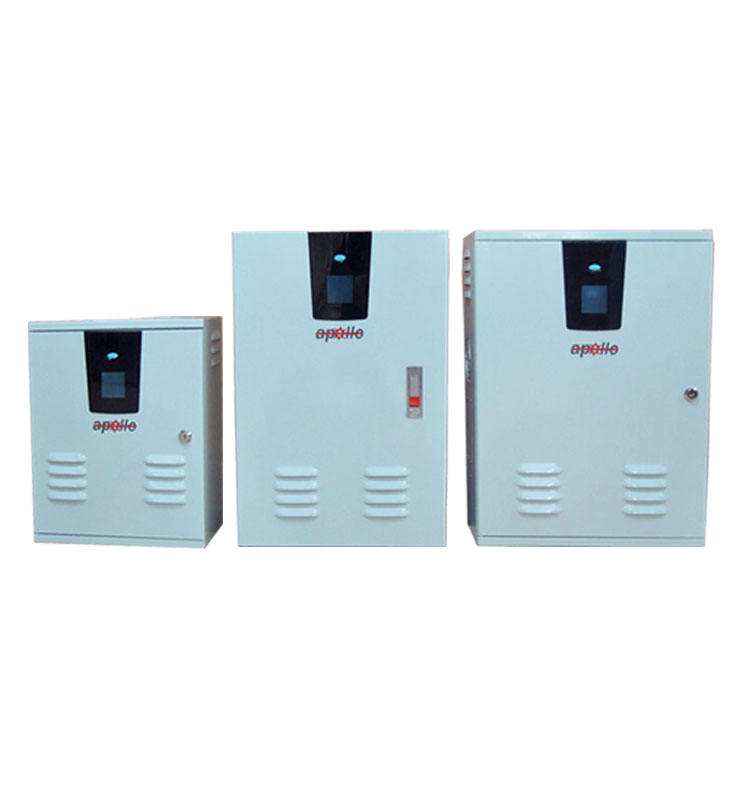

TPS (Three Phase)

  • LCD display
  • Smart CPU Control
  • Easy to installation
  • Manual Rescue function (option)

Model

TPS-11

TPS-15

TPS-25

TPS-30

TPS-39

TPS-45

TPS-60

TPS-100

Capacity

5.5 KW

7.5 KW

12KW

15KW

18KW

22KW

25KW

32KW

AC Input

380Vac / 415Vac +/- 20% Three Phase Input. 50/60Hz ±10%

DC Voltage

36Vdc

48Vdc

60Vdc

72Vdc

84Vdc

96Vdc

120Vdc

144Vdc

180Vdc

12V

7Ah

×3

12V

7Ah

×4

12V

7Ah

×5

12V

7Ah

×6

12V

7Ah

×7

12V

7Ah

×8

12V

7Ah

×10

12V

7Ah

×12

12V

7Ah

×15

Charger Type

Controlled Rectifier CVCC

Charging Time

10 Hours for 90% of Full Battery Capacity

Inverter

Technology

IGBT based PWM Sine Wave

Output Voltage

380Vac / 415Vac Three Phase 50/60Hz ±0.1Hz

Efficiency

85%

Overload

105% continuous

Harmonic Distortion

<3% on Linear load

Crest Factor

4:1

Power Factor

0.8

Phase Displacement

120° ±1°

LCD Display

Start ARD when Black out

Charging Battery

Battery Full

Over Load

Open on level

Protection

Output Overload & Short circuit,

DC Under & Over Voltage

*Specifications are subject to change without prior notice.
