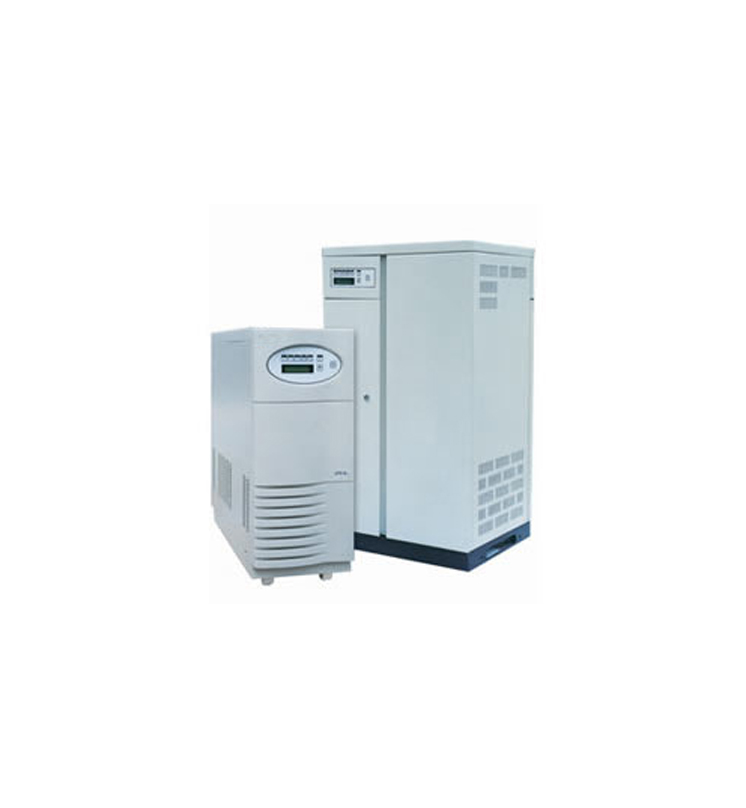

2B series

Model

2B2KL(S)

2B3KL(S)

2B3.75 KL(S)

2B5K/2B6KL(S)

2B10K

Output capacity

2000VA

3000VA

3750VA

5000/6000VA

10000VA

Input

Voltage

110VAC±20%/220VAC±25%

Frequency

60Hz±5%/50Hz±5%

Ouput

Voltage

110V±1%/220V±1%

Frequency

60Hz±0.5%/50Hz±0.5%(Free running)

Distortion

THD<5%;THD<3%

Non linear load THD<5%;resistance load thd<3%

Stability voltage at transient state

Full load±4%

wave form

Sine wave

Crest factor

3:1

Power factor

0.8-1 LAG

AC/AC

>85%

Battery

DC Voltage

96V

192V

Number

12V/7Ah×8pCS

12V/7Ah×16pCS

Transfer time

AC fault

0ms

UPS fault

<2ms

Alarm

AC fault

alarm every 4 seconds,stop after90 seconds

battery low voltage

alarm every 1 seconds until cut-off and battery LED flash every 2 seconds

UPS over load

Continue voice

UPS fault

Continue voice

Protection

Over load

125%load ,change to by-pass and auto-restart after 25s

Battery

Circuit breaker

Short circuit

Breaker, current limited and cut-off

Over temperature

>85℃change to by-pass

EMI filter

150~500K Hz ,79dB /500K~30M Hz ,73dB

Display

LED

mains input/by pass/inverter/battery/over load/fault

LCD

Input &,output voltage or battery voltage/frequency/load rate/UPS condition/temperature

Interface

RS232

mains/inverter voltage/battery capacity/load capacity/mains frequency/temperature/ time-shutdown etc

General data

Temperature

0℃~40℃

Humidity

20~90% No condensing

Noise

<58dB at 1 meter

Noise(at 1 meter)

56/85kg

64/93kg

64/93kg

77/126 kg

106 kg

Dimension
(W×D×H)

585*230*720mm

585*230*580mm

585*230*720mm

585*230*580mm

480×340×845mm

Output socket

1 connection bus
